Rave Reports Visual Designer

Project Tree Panel

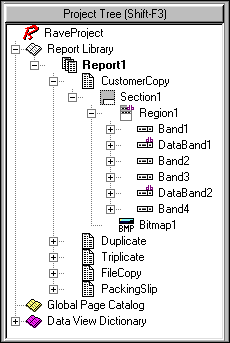

The Project Tree panel provides an easy way to navigate your design structure. This tree style view shows your reports and their design structures in an overview or outline type fashion. It is a very informative part of the RAVE designer and once you have designed some reports simple or complex, remember to visit it and you will see what we mean.

Note that the three main areas in the project tree (Report Library, Global Page Catalog and Data View Dictionary) can contain multiple definitions within each category. Each node (and any sub nodes) can be expanded or collapsed by clicking on the plus/minus symbol. You can add items to any of these nodes from the "Project" option on the main menu. There you will see an option for each of the nodes "New Report", "New Global Page" and "New Data View". If you wish to add a "New Page" to the Report Library node that is done through the "Report" option from the main menu. You can change the width of the tree panel to your desired size.
