ISpeechPhraseAlternate Code Example

The following Visual Basic form code displays use of the ISpeechPhraseAlternate object. It demonstrates recognition and the EmulateRecognition method. In addition, it demonstrates the use of the SpeechDocs DLL created in the Sample DLL section. This DLL must be created before this code can be run.

To run this code, create a form with the following controls:

A text box called Text1

Two list boxes, called List1 and List2

Two command buttons, called Command1 and Command2

Paste this code into the Declarations section of the form.

Because this code uses the SpeechDocs DLL, it is necessary to add a reference to "SpeechDocs" in the Project, References dialog.

The solitaire grammar is located in the default directory for a standard SAPI SDK installation. If the file is not there, use the path to an existing version. If no file is available, use the example code from VB Application Sample: Command and Control Recognition if needed.

The Form_Load procedure creates a recognizer, a recognition context, and a grammar object. It loads the grammar object with sol.xml, the Solitaire grammar from the SAPI sample code, then activates the command and control (C and C) and dictation components of the grammar, and places a Solitaire command in the text box. Text matching the rules of the Solitaire grammar will produce better recognition results, but in order to demonstrate recognition alternates, it is necessary to enter phrases that do not satisfy grammar rules.

The command button, captioned Recognition, speaks text from the text box into an audio file, and then performs speech recognition of that file. The command button captioned EmulateRecognition simply calls the EmulateRecognition method.

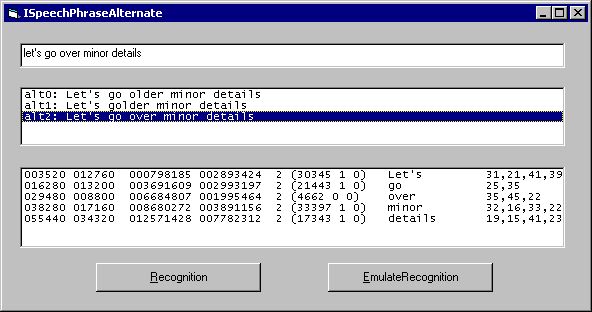

When alternates are available, the code displays three alternates in the top list box, and shows the phrase elements of one alternate in the lower list box. Click any alternate to display its phrase elements in the lower list box. Double click any alternate to perform the Commit method on that alternate. In the illustration below, the first alternate is incorrect; the second alternate is highlighted, and its phrase elements are displayed in the lower list box.

The data displayed in the lower list box is the same data displayed in the ISpeechPhraseElement code example. Please see that page for full details.

Option Explicit

Dim D As SpeechDocs.Class1      'DLL created from Speech docs

Const WAVEFILENAME = "C:\ISpeechPhraseElement.wav"

Private blnAlternatesExist As Boolean

Dim R As SpeechLib.SpInprocRecognizer
Dim G As SpeechLib.ISpeechRecoGrammar
Dim F As SpeechLib.SpFileStream
Dim V As SpeechLib.SpVoice

Dim PI As SpeechLib.ISpeechPhraseInfo
Dim A As SpeechLib.ISpeechPhraseAlternate
Dim AA As SpeechLib.ISpeechPhraseAlternates
Dim E As SpeechLib.ISpeechPhraseElement
Dim EE As SpeechLib.ISpeechPhraseElements

Dim WithEvents C As SpeechLib.SpInProcRecoContext

Private Sub Command1_Click()

    List1.Clear
    List2.Clear
    Screen.MousePointer = vbHourglass

    'Call this method in the DLL to speak into a file
    Set F = D.SpeakToFile(Text1.Text, WAVEFILENAME, "Microsoft Sam")

    'Set the file as recognizer's input stream
    F.Open WAVEFILENAME
    Set R.AudioInputStream = F

End Sub

Private Sub Command2_Click()

    List1.Clear
    List2.Clear
    Screen.MousePointer = vbHourglass
    C.Recognizer.EmulateRecognition Text1.Text

End Sub

Private Sub Form_Load()

    ' Create Recognizer, RecoContext, Grammar, and Voice
    Set R = New SpInprocRecognizer
    Set C = R.CreateRecoContext
    Set G = C.CreateGrammar(16)
    Set V = New SpVoice

    Set D = New SpeechDocs.Class1   'Create Class1 object from SpeechDocs DLL

    ' Load Grammar with solitaire XML, set active
    G.CmdLoadFromFile "C:\Program Files\Microsoft Speech SDK 5.1\Samples\CPP\Reco\sol.xml", SLOStatic
    G.CmdSetRuleIdState 0, SGDSActive           'Set C & C active
    G.DictationSetState SGDSActive              'Set Dictation active

    Text1.Text = "let's go over minor details"
    Command1.Caption = "&Recognition"
    Command2.Caption = "&EmulateRecognition"

End Sub

Private Function PhonesToString(ByVal arrV As Variant) As String
    Dim ii As Integer, S As String
    If IsEmpty(arrV) Then
        PhonesToString = ""
    Else
        For ii = 0 To UBound(arrV)
            If Len(S) Then
                S = S & "," & arrV(ii)
            Else
                S = arrV(ii)
            End If
        Next ii
        PhonesToString = S
    End If
End Function

Private Sub C_Recognition(ByVal StreamNumber As Long, _
                    ByVal StreamPosition As Variant, _
                    ByVal RecognitionType As SpeechLib.SpeechRecognitionType, _
                    ByVal Result As SpeechLib.ISpeechRecoResult)
    Dim nn As Integer

    Set AA = Result.Alternates(3)       'May or may not be available
    If AA Is Nothing Then

        'No alternates when speech matches a grammar rule
        'No alternates when using EmulateRecognition
        blnAlternatesExist = False
        List1.AddItem Result.PhraseInfo.GetText
        If Len(Result.PhraseInfo.Rule.Name) Then
            List1.AddItem "   matches rule """ & Result.PhraseInfo.Rule.Name & """"
        End If
        Set PI = Result.PhraseInfo
    Else

        blnAlternatesExist = True
        nn = 0
        For Each A In AA
            List1.AddItem "alt" & Format(nn) & ": " & A.PhraseInfo.GetText
            nn = nn + 1
        Next
        Set PI = AA.Item(0).PhraseInfo
    End If

    List1.ListIndex = 0     'Highlight the selected alternate
    Call DisplayPhraseElements(0)
    Screen.MousePointer = vbDefault

End Sub

Private Sub C_EndStream(ByVal StreamNumber As Long, _
                    ByVal StreamPosition As Variant, _
                    ByVal StreamReleased As Boolean)

    'Recognition uses the Filestream, EmulateReco does not
    If ActiveControl.Caption = "&Recognition" Then
        F.Close
        DoEvents
        F.Open WAVEFILENAME
        V.SpeakStream F
        F.Close
    End If
    Screen.MousePointer = vbDefault

End Sub

Private Sub DisplayPhraseElements(Index As Integer)
    Dim X As String
    Dim T As String
    Dim A1 As Long, A2 As Long
    Dim T1 As Long, T2 As Long
    Dim C1 As Single, C2 As Integer, C3 As Integer

    List2.Clear

    'If no alternates, then there is only one PhraseInfo
    If blnAlternatesExist = True Then
        Set PI = AA.Item(Index).PhraseInfo
    End If

    For Each E In PI.Elements

        'Audio data
        A1 = E.AudioStreamOffset
        A2 = E.AudioSizeBytes
        X = Format(A1, "000000") & " " & Format(A2, "000000") & "  "

        'Time data
        T1 = E.AudioTimeOffset
        T2 = E.AudioSizeTime
        X = X & Format(T1, "000000000") & " " & Format(T2, "000000000") & "  "

        'Display attributes
        X = X & Format(E.DisplayAttributes) & " "

        'Confidences
        C1 = E.EngineConfidence
        C2 = E.ActualConfidence
        C3 = E.RequiredConfidence
        T = "(" & Format(C1) & " " & Format(C2) & " " & Format(C3) & ")"
        X = X & Left(T & "         ", 14)

        'Text and pronunciation
        X = X & Left(E.DisplayText & "              ", 14)
        X = X & PhonesToString(E.Pronunciation)

        List2.AddItem X
    Next

End Sub

Private Sub List1_Click()
    Call DisplayPhraseElements(List1.ListIndex)
End Sub

Private Sub List1_DblClick()
    AA.Item(List1.ListIndex).Commit
End Sub
