Rave Reports Visual Designer

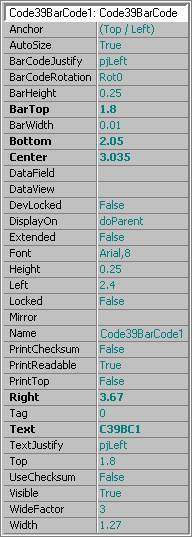

Code39BarCode component (TRaveCode39BarCode) - Bar Code Tab

Code39BarCode is an alphanumeric bar code that can encode decimal numbers, the uppercase alphabet, and the following special symbols "_", " . ", "*", "$", "/", "%", and "+". The characters are constructed using nine elements, five bars and four spaces. Of these nine elements, two of the bars and one of the spaces are wider than the rest. Wide elements represent binary ones (1), and narrow elements represent binary zeros (0).

See Also:

Anchor, AutoSize, Bar Code Components, BarCodeJustify, BarCodeRotation, BarHeight, BarTop, BarWidth, Bottom, Center, DataField, DataView, DevLocked, DisplayOn, Extended, Font, Height, Left, Locked, Mirror, Name, PrintChecksum, PrintReadable, PrintTop, Right, Tag, Text, TextJustify, Top, UseChecksum, Visible, WideFactor, Width
