Rave Reports Visual Designer

I2of5BarCode component (TRaveI2of5BarCode) - Bar Code Tab

2of5Bar Code (interleaved 2 of 5) is a numbers-only bar code; in the Property Panel it is labeled I2of5BarCode. The symbol can be as long as necessary to store the encoded data. The code is a high-density code that can hold up to 18 digits per inch when printed using a 7.5 mil X dimension. "Interleaved" comes from the fact that the digit is encoded in the bars and the next digit is encoded in the spaces. There are five bars, two of which are wide and five spaces, two of which are wide.

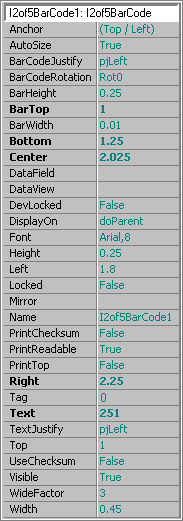

Properties of I2of5BarCode

Anchor, AutoSize, BarCodeJustify, BarCodeRotation, BarHeight, BarTop, BarWidth, Bottom, Center, DataField, DataView, DevLocked, DisplayOn, Font, Height, Left, Locked, Mirror, Name, PrintChecksum, PrintReadable, PrintTop, Right, Tag, Text, TextJustify, Top, UseChecksum, Visible, WideFactor, Width
