Project Tree page

On the Tree page of the Project window you can see the tree-structure of the Client Jobs of the selected Project and create/edit/delete these Client Jobs.

To open the Tree page of the Project window click Project icon from the Navigation panel and then click Tree tab or select the correspondent commands from the Navigation menu.

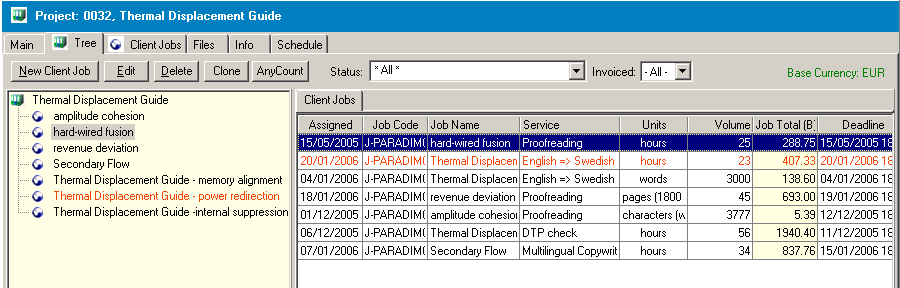

The general view of the Project Tree page:

As you can see, Tree page consists of the following parts:

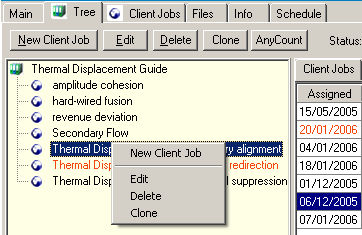

You can create a new Client Job, edit or delete the existing Jobs of the Project using the correspondent buttons or right-clicking on the tree structure and selecting the correspondent command:

Click AnyCount button to call built-in word count tool, AnyCount 5.0 and automatically insert the count results to the New Client Job window.

After the AnyCount button click you will need to specify the count units in the Select Unit dialog, using the drop-down list:

After you click OK in the Select Unit window, you need to specify the file to be counted. After the AnyCount engine runs, the New Client Job window opens and count results are automatically pasted to its Volume field.

See Also: AnyCount

In the right part of the Project Tree page you can see the list of the Client Jobs and its properties. This Client Jobs list and drop-down lists above it are absolutely similar to the Client Jobs page content. More details...

See Also:

Creating a new Client Job

Modifying a Client Job

Deleting a Client Job record

Project Client Jobs page
