Button Panel

Button Panel is a component of Projetex 2006 Workstation interface, located in its bottom part:

It consists of six groups of buttons: History, Jump, Open Folders, Local Custom Filter, Local Report, Global Date Filter.

See Also: Introduction to Projetex 2006 User Interface

History buttons.

switches Projetex 2006 to the previously visited page or window.

brings you back to the page or window that was opened before you clicked .

Jump buttons.

Clicking you jump to the Client window, the page depends on the window opened and element selected at the moment you clicked.

For example,

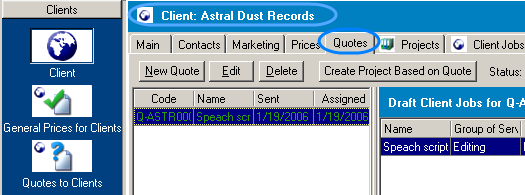

Quotes to Clients window is opened, Astral Dust Records Client record is selected from the list:

If you click Projetex 2006 switches to Quotes page of Client window displaying data for client Astral Dust Records:

and buttons work similarly to .

switches to certain page of the Project window, displaying data for selected Project.

switches to certain page of the Expert window, displaying data for selected Expert.

Open Folders buttons.

Using Open Folders drop-down list you can easily switch between the folders opened during the current Projetex 2006 working session. Any folder you open using Projetex 2006 (using Explore buttons) is automatically added to the list. When you need to switch, just select the necessary folder in the drop-down list and click Go button.

Local Custom Filter buttons.

Use Local Custom Filter buttons to construct filter conditions, thus simplifying the search of necessary records in your TO3000 database. For example, you can build the filter to display only Projects of the particular Client Project Manager which are due today.

Note: Local Custom Filter is available only when Projetex 2006 is switched to the Main page of the Client, Project, Corporate Export or Freelancer window.

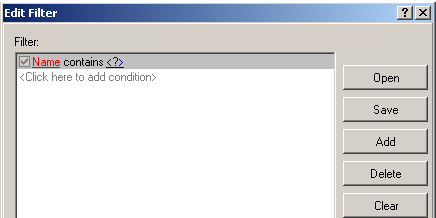

Edit button opens Edit Filter window. The general view:

Note: Conditions can be set on the Custom Fields as well.

On/Off button switches on/switches off the filter correspondingly.

Recent button switches on the last created filter.

Local Report buttons.

Local Report buttons give you possibility to save the content of Projetex 2006 window currently displayed (save it in a separate file of defined format or print).

Export button opens Export window, where you can choose the desired format of output file.

Print button opens the Preview of the document you are about to print.

See Also: Exporting Projetex data

Global Date Filter buttons.

Global Date Filter buttons are designed to filter records according to user defined date conditions.

Edit button opens Edit Global Date Filter window.

On/Off button correspondingly switches on/switches off the date filter.

Recent button switches on the last created data filter.

See Also: Global Date Filter.
