Rave Reports Visual Designer

Zoom - Toolbar

The "Zoom" tab selects the toolbar that you would use to control viewing size of your page.

It is recommended that you first select an item that you want in the "new" view scale before changing the "Zoom Factor".

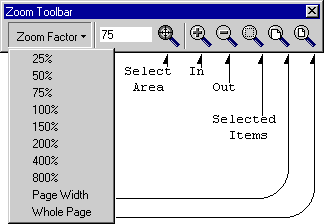

The Zoom Toolbar allows you to view your page layout as desired. You can zoom out to full page and get an overall view of all items or you can be zoomed in to get a more detailed view of a portion of the page. The Zoom Factor has a drop box menu to will allow you quickly go to full page, page width or one of several of fixed settings. If you want to zoom in then you can use the magnifying glass with a "+" symbol. Each click would go in by the incremental amount that is set in your preference settings. The "-" symbol does the same thing except it will zoom out with each click. If you want to see the details about item(s) that you have selected then use the glass with doted lines. If you want to look a particular area but it may or may not have selected items, use the glass with both the "+/-" in it and draw a box around the area that you wish to examine. The right two most magnifying glass are for zooming into "page width" or "full page" views. Drop a few components on a page and try the different zoom tools.
